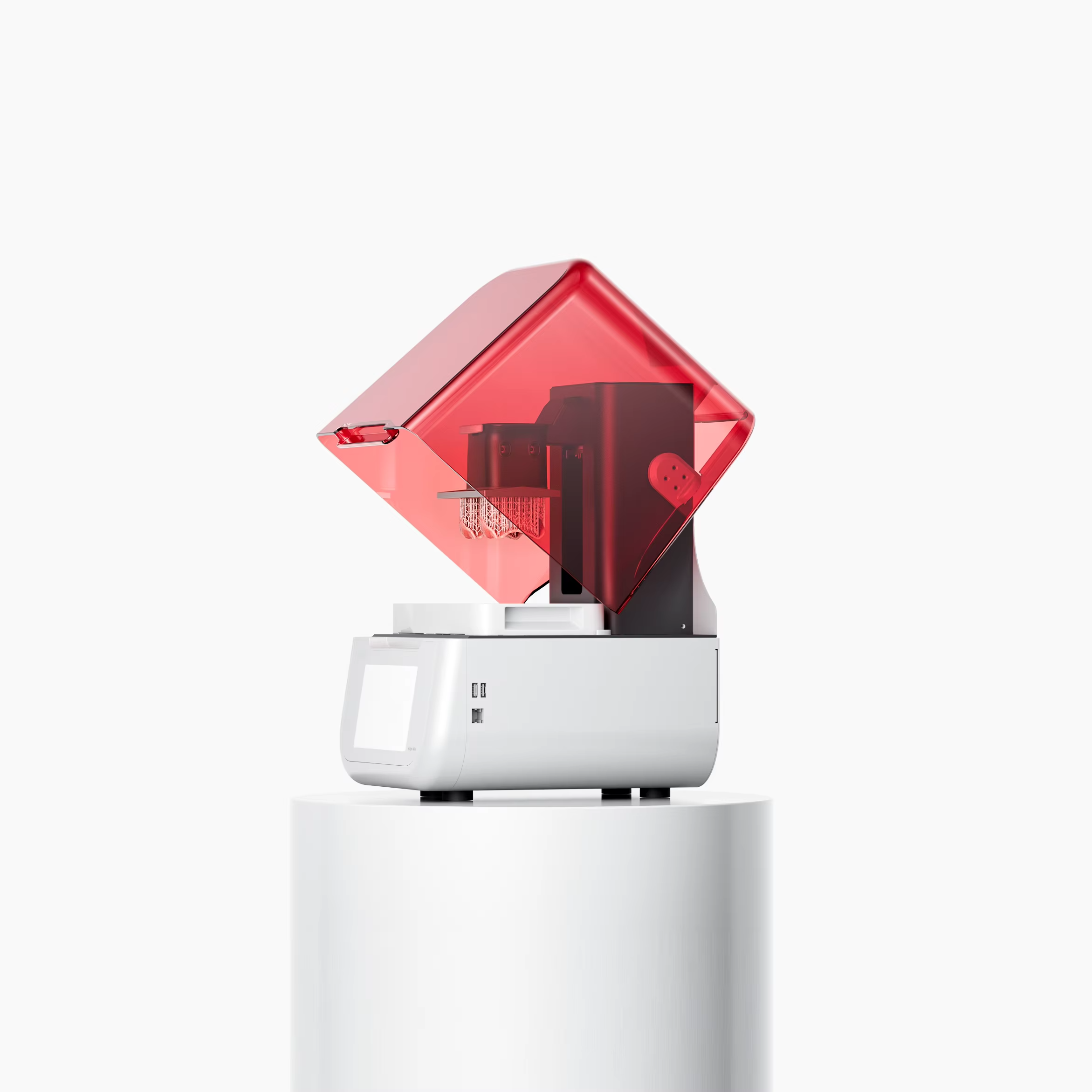

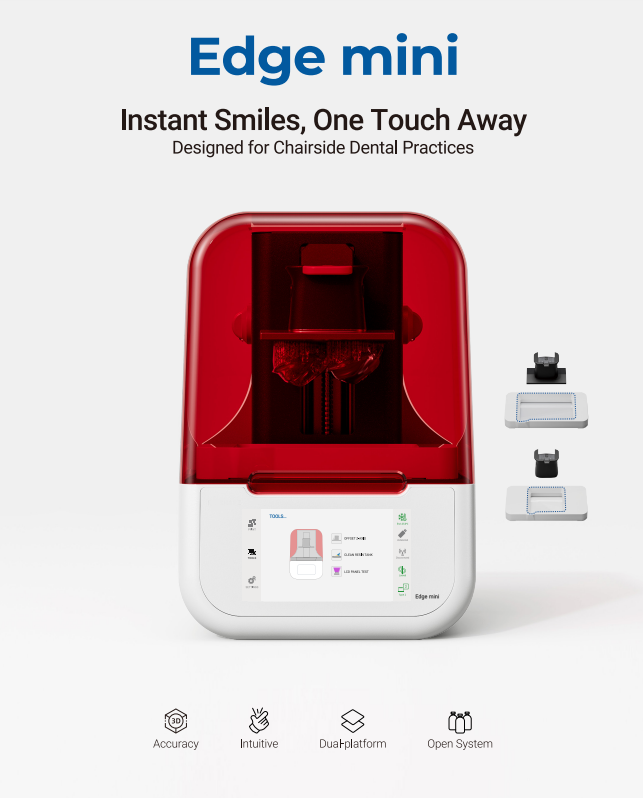

Edge Mini Dental 3D Printer for Chairside Crowns & Aligners
Edge Mini Chairside 3D Printer: 34.4μm precision, dual platforms. Prints aligners, crowns, guides & more.
（0 Reviews）
0 Sold
$0.00

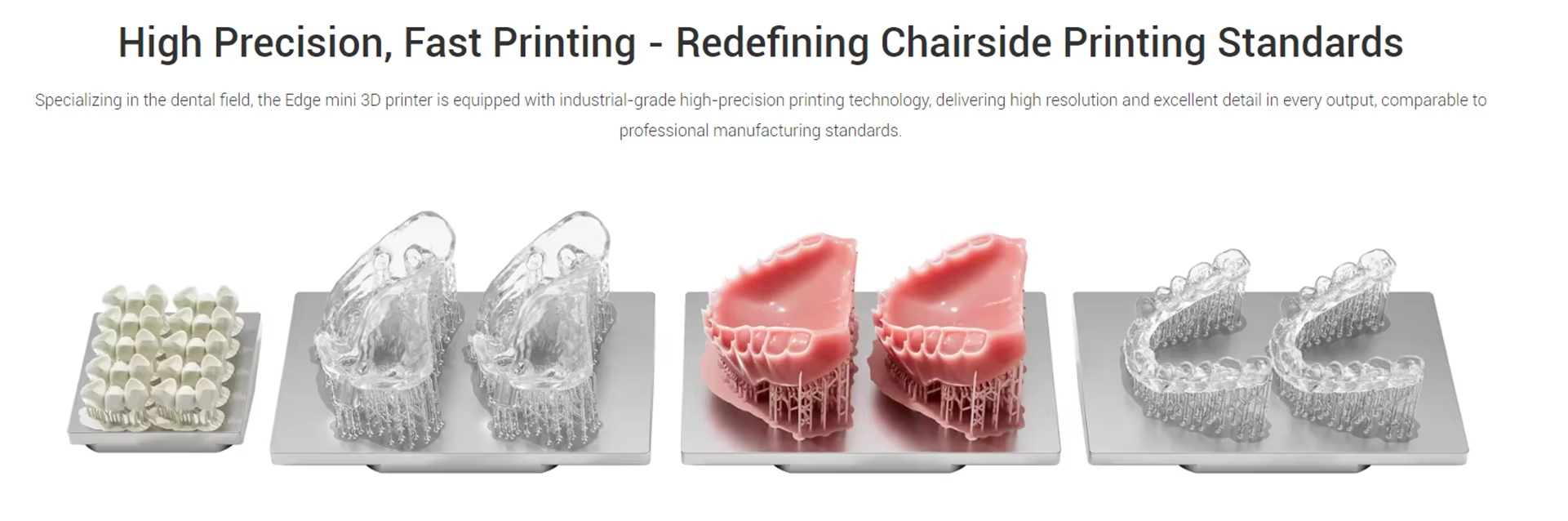

Ultra-Precision Printing: 34.4μm ultra-high precision ensures perfect fit for crowns, bridges, surgical guides, and other restorations.

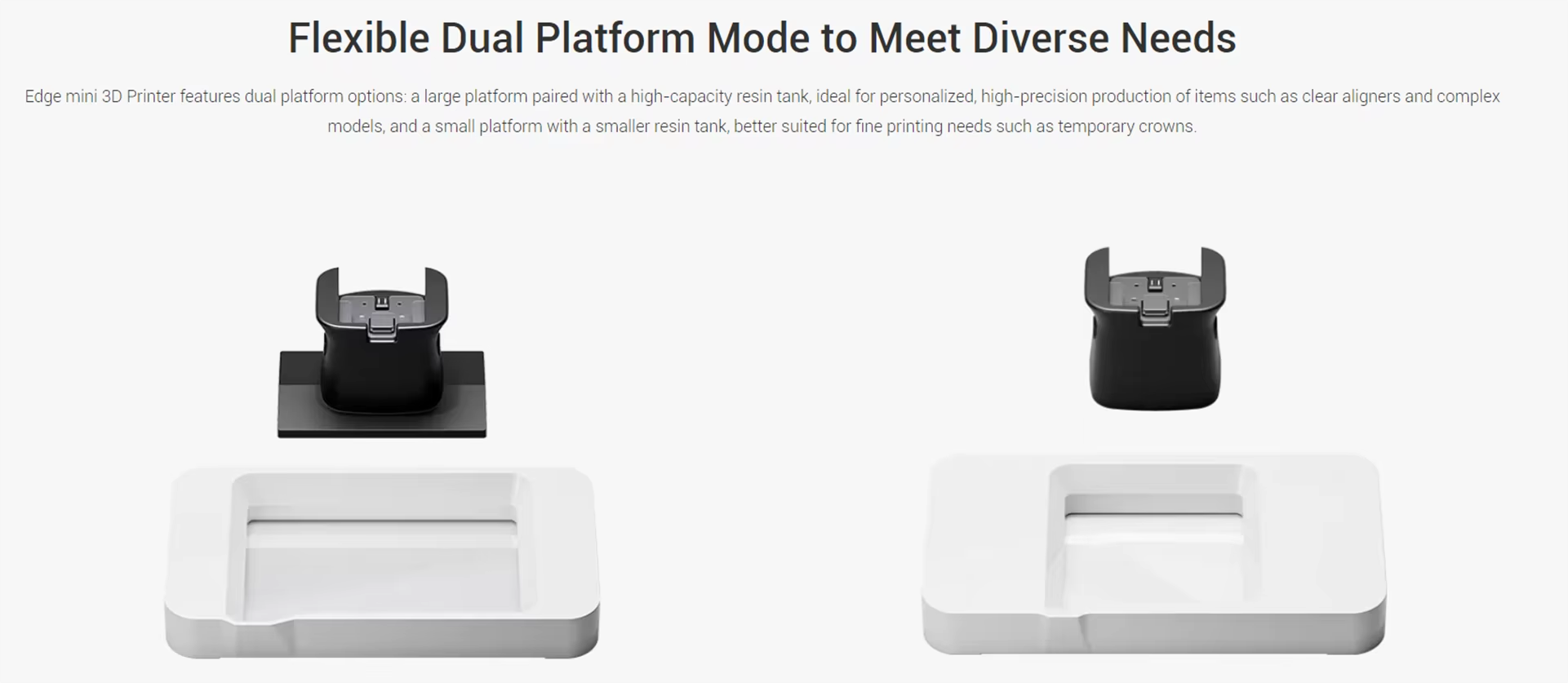

- Dual Flexible Platforms: The small platform (74x64x100mm) is ideal for fine parts like crowns and veneers; the large platform (130x80x100mm) accommodates batch printing or larger items like surgical guides, occlusal splints, and denture bases.
- One-Click Smart Operation: Features an intuitive smart interface with AI-driven automatic nesting and slicing. Beginners can start in just 5 minutes, completely eliminating tedious parameter settings.

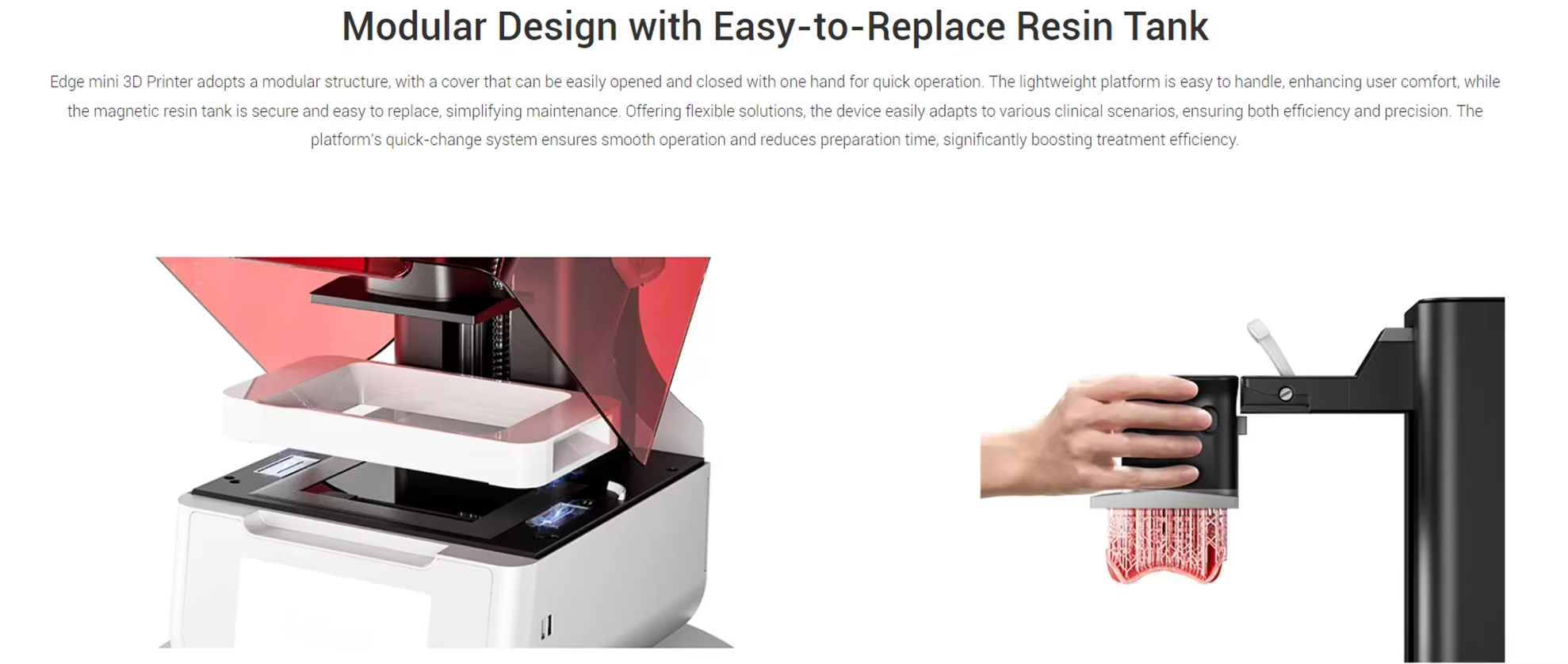

- Magnetic Quick-Change Design: Lightweight build platform and magnetic resin vat allow for single-handed material replacement in just 3 seconds, minimizing downtime.
Extensive Clinical Applications

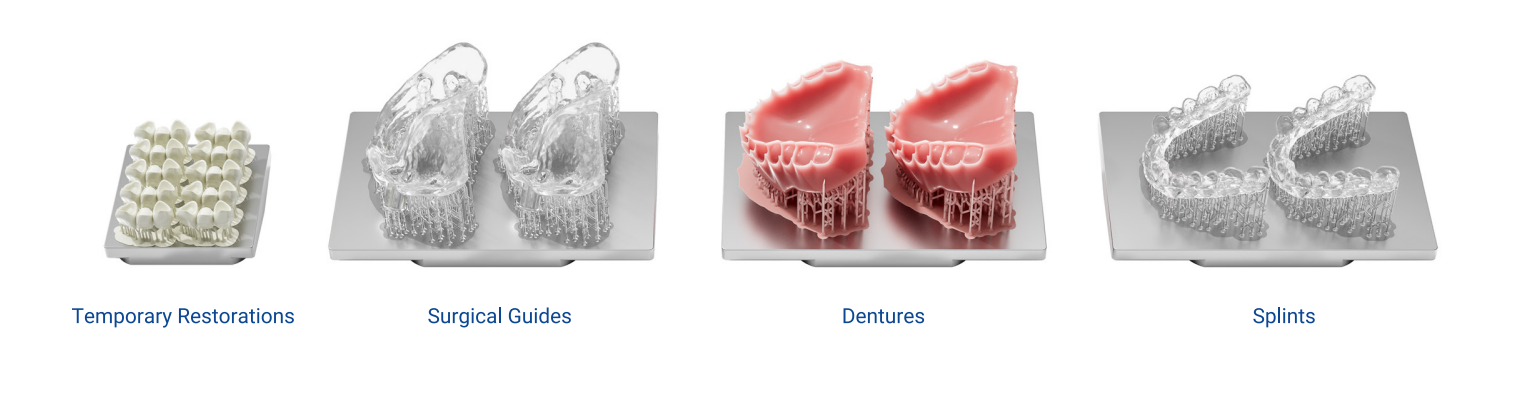

One device meets diverse clinical needs, including: temporary crowns/bridges, surgical guides, orthodontic splints, immediate-load dentures, high-precision working models, and denture bases.
One device meets diverse clinical needs, including: temporary crowns/bridges, surgical guides, orthodontic splints, immediate-load dentures, high-precision working models, and denture bases.
Complete Digital Ecosystem

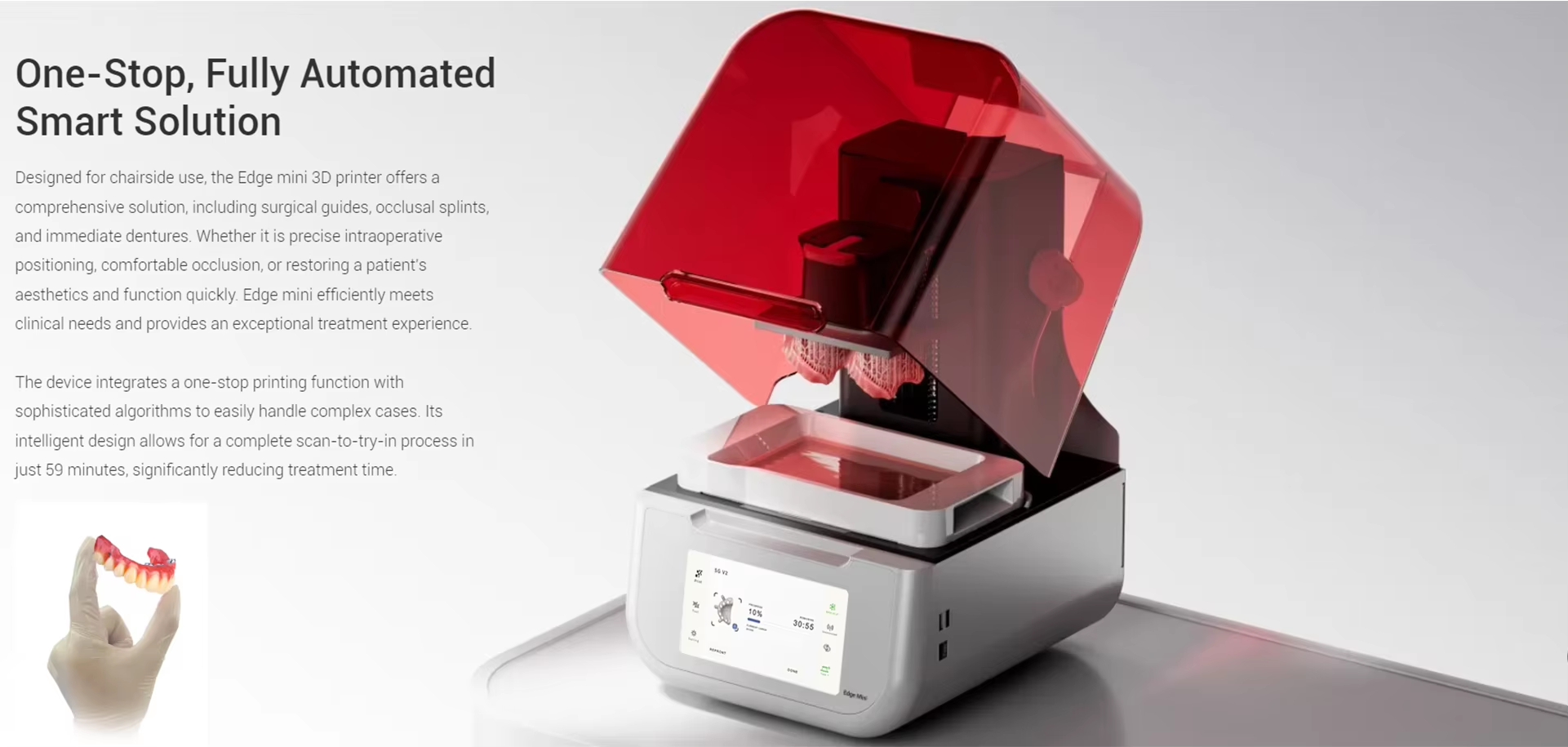

Seamlessly connects with intraoral scanners and post-processing systems (washing and curing) to build a complete chairside digital closed-loop workflow from scanning and design to printing and post-processing.
Applications:
Surgical guides - Splints - Gingiva - Tryin - Custom trays - Denture - Record Model - Clear Aligner - Casting - Temporary restoration-Indirect bonding trays
Seamlessly connects with intraoral scanners and post-processing systems (washing and curing) to build a complete chairside digital closed-loop workflow from scanning and design to printing and post-processing.
Applications:
Surgical guides - Splints - Gingiva - Tryin - Custom trays - Denture - Record Model - Clear Aligner - Casting - Temporary restoration-Indirect bonding trays
| Product name | 3D Printer |
| Technology | LCD Technology |
| Printing Precision | 34.4μm |
| Small Platform Size | 74 x 64 x 100 mm |
| Large Platform Size | 130 x 80 x 100 mm |
| LCD screen | 6.23-inch 4K |
| Light source | 405nm LED |
| Resolution | 3840 x2400 pixels |
| Touch screen | 7-inch |
| Connectivity | USB2.0, Wireless network, Ethernet |
| Input | 100~120VAC,50/60Hz 220~240VAC,50/60Hz |
| Rated power | 200W |
| Language | English |
| Operating system | Windows 10/11 |
| File format | (Import)stl,.obj (Export)rs,.shape |
| Advanced functions | Support editing, automatic repair, model cutting.nollowing, perforating, labeling |
| Network printing | Deliver printing tasks to specified printer in LANenvironment via"One Click"operation |
| Cluster management | Manage the printing tasks of multiple devices inLAN environment |
