YRC-9PRO 5-Axis Multi-Disc Milling Machine for Dental Labs
YRC-9PRO 5-Axis Milling Machine: 18 discs, 12 tools. 24/7 unattended production for dental labs.
（0 Reviews）
0 Sold
$0.00

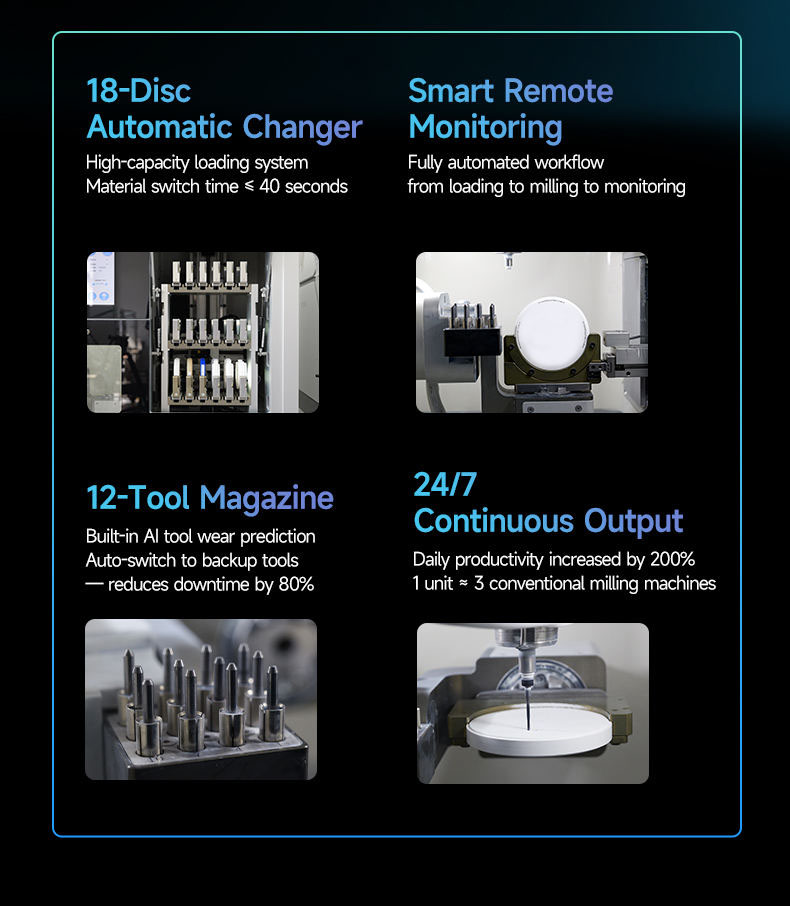

Engineered for maximum efficiency and minimal downtime, this intelligent milling system integrates a latest-generation servo drive with mechanical encoder solution for superior accuracy. The 18-slot disc magazine and 12-tool carousel allow seamless switching between materials and tools without manual intervention. Its 360° AB axis rotation (-95° to +30°) and 175mm–150mm–90mm milling range accommodate complex geometries. Weighing 260kg and requiring 4.5–7.5bar air pressure, it’s built for industrial-grade durability. Backed by a 14-month warranty on core components and 24-hour professional after-sales support, it’s ideal for labs seeking automation, precision, and cost savings.
| Product name | 5-Axis Multi-Disc milling machine |
| Milling materials | Zirconia block, PMMA, PEEK, WAX |
| Processing Methods | Five-axis linkage, Dry milling |
| Tool magazine capacity | Number:12 Diameter:4mm |
| Total Power | 1.8kw |
| Dimension | 932*730*855mm |
| Weight | 260kg |
| Milling range | X/Y/Z:175mm-150mm-90mm |
| Automatic Tray Silo | 18-slot |
| AB axis working angle | -95°~+30° 360° |
| Applications | Coping, Crown, Bridge, Inlay,Custom Abutments, Bracket, etc. |
| Required air pressure | 4.5-7.5bar |
